PSS for Rapid Fire Escape of High-rise Buildings

Proposal of IoT-based rapid fire escape solutions by linking mobile applications to fire detectors considering the characteristics high-rise buildings are vulnerable to

Keyword : product-service system | fire escape guidance | design research | design scenario

Overview

- Collaborative with : LDT, KIDP(Korea Institute of Design Promotion), KNUT(Korea National University of Transportation)

- Period : Apr. - Dec. 2018(9 months)

- Team : Design researcher 3, product designer 1 (our company),

- Role : Design researcher at Backstage

- Contribution : user research, concept development, facilitation, validation

* This project has been supported by the R&D programme for Design Innovation Capability of the Korea Evaluation Institute of Industrial Technology(KEIT) for 3 years

Approach

Opportunity

Identification

Concept

Design

Concept

Design

- Desk research

- Field research

- Persona

- Stakeholder Interviews

- Service safari

- Service blueprint

- Co-creation workshop

- Positioning map

- Kano model

- Idea prioritisation

- Service scenario

- As-is / To-be model

- App UX tree

Challenges

Difficult to quickly evacuate and rescue within Golden Time due to the characteristics of high-rise buildings

Since fires do not occur frequently, thorough desktop research was needed. Therefore we had to scrutinize the major causes of fire and the current countermeasures in place. In particular, when a fire breaks out in a high-rise building, evacuation manuals developed for regular buildings are insufficient and often make it difficult to evacuate.

2. 고층건물 화재대피 시스템-07.jpg

Opportunity Identification

Field Research

Three high-rise buildings located in Busan were visited in person to understand the current process related to fire evacuation.


Service safari: Experimental user research

Since fire is not a common phenomenon around us, we found a demand from 10 participants for 8 situations by creating a virtual environment for fire evacuate. For this, we rented a high-rise building which is located in Busan. Participants were encouraged to use prepared cards, including emotions and needs in a given situation, and put them on the board in order of priority.

Card sorting method

The participants attached cards based on their priorities to the feelings and thoughts they felt in each situation.

In-depth interview

After the card sorting, we conducted 1:1 interviews and watched the recorded video together in order to ask in-depth questions about the reasons behind their choices.

< 8 Evacuation scenarios >

card sorting 2.jpg
card sorting3.jpg

Card sorting method

We divided different roles to proceed the experiment in an efficient way. At first, we prepared boards at each scenario place to attach cards. I was in charge of facilitating to give instructions to testers holding the cards. I followed the tester in each scenario we made and explained the virtual situation of the fire in the high-rise building that the tester faced. Another person was in charge of recording the videos and deliver the recorded videos to the interviewer in the interview room.

In-depth interview

She was waiting for the participant in an interview room until they finished the service safari. They were watching the recorded videos together to remind his choice and ask the reason why the tester selected certain cards.

Clarify relations
with each stakeholder

We had an in-depth interview with 6 experts with expertise on this subject. (fireman, building manager, psychologist etc.) All of this basic data helped to clarify a tangled relations of the stakeholders.

2. 고층건물 화재대피 시스템-09.jpg

Service blueprint

To identify the service context according to the order of the refuges, the face-to-face and other services of building managers and fire stations were arranged in context by drawing the Service Blueprint.

service blueprint-01.png

Concept Design

Co-creation Workshop

A carefully designed co-creation workshop took place twice. The first workshop was aimed at creating ideas, and the second one was  designed to assess and modify improved ideas from the perspective of investment effectiveness, feasibility and viability

Second Workshop

: Evaluation for Priority of Ideas

The weighing of the evaluation factors was  calculated with experts to assess the suitability and importance of the ideas derived through brainstorming.

Positioning Map

Participants put up stickers with ideas on them and then an average value was calculated to create a priority.


The weighing of the evaluation factors was  calculated with experts to assess the suitability and importance of the ideas derived through brainstorming.

Positioning Map

Participants put up stickers with ideas on them and then an average value was calculated to create a priority.

2. 고층건물 화재대피 시스템-10.png

Value Proposition

PSS for Rapid Fire Escape of High-rise Buildings


NAVIGATION


RELIABLE


INTUITIVE GRASP


BE WELL PREPARED

Provide the optimized direction based on GPS location

Real-time information provision ensures mental security

Voice and visual elements make it easier to find the correct path of evacuation

Provide regular training and education even before a fire occurs

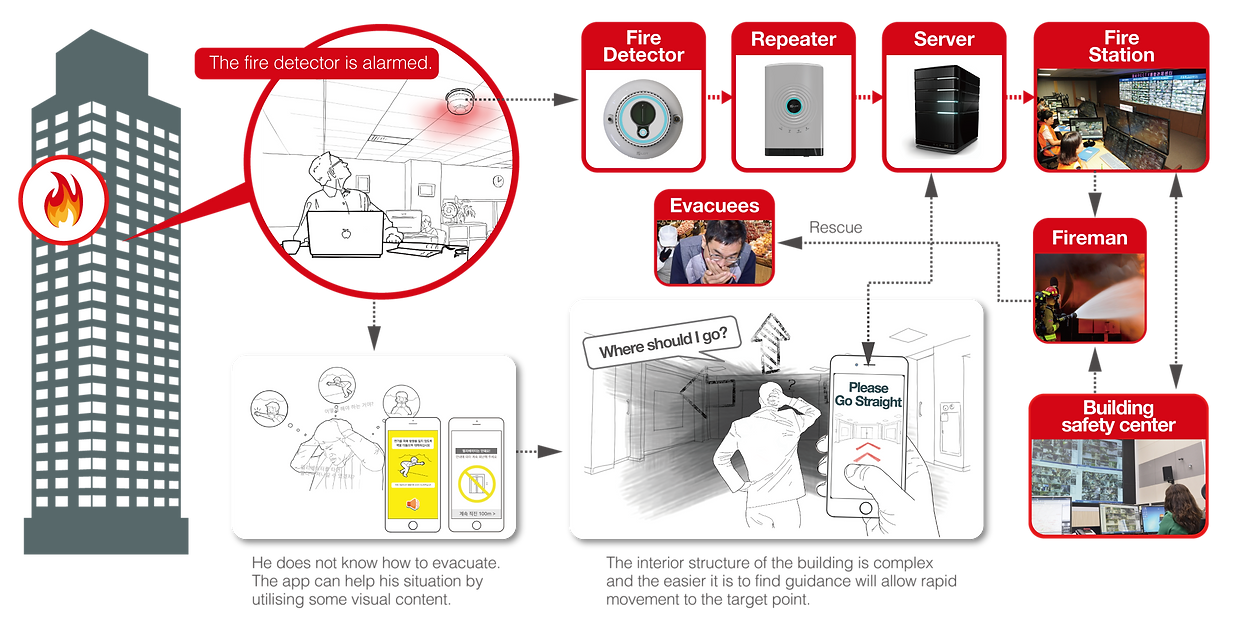

Design scenarios
